Best CPU Air Cooler for 9800X3D: 5 Quiet Dual Towers 2026

The best CPU air cooler for 9800X3D has an easier job than the previous generation gave it. Moving the stacked cache underneath the cores improved heat transfer to the heat spreader, so a good dual tower now handles this chip without the awkward compromises 3D V-Cache used to demand. Fit is what decides this now.

As an Amazon Associate we earn from qualifying purchases.

By Ryan Cole

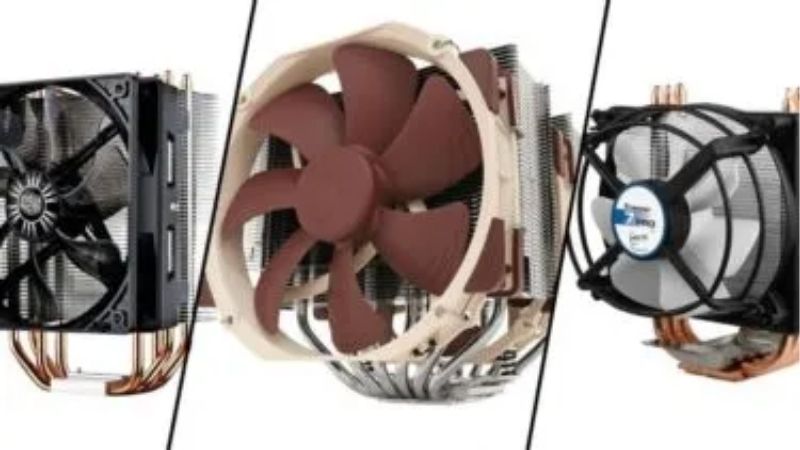

How to Choose the Best CPU Air Cooler for 9800X3D

This is an eight-core chip with a 120W TDP and a package power limit around 162W, and AMD lets it boost until it reaches 95C. Four factors decide whether it runs quietly or spends every session near that ceiling with the fans working hard. That is the frame for picking the best CPU air cooler for 9800X3D.

Capacity against a 162W package limit

Buy against package power rather than the TDP printed on the box, because the higher figure is what the cooler actually has to shed during a sustained workload. A tower rated around 220W or more leaves the fans working well below maximum. The higher figure is the one to plan around.

Dual-tower designs clear that comfortably, and the extra fin area is what buys quiet rather than lower peak numbers. Single towers keep the chip stable but ramp harder and hold higher sustained temperatures once a session runs long. Fin area is what buys quiet operation.

Why this generation is easier to cool

The second-generation 3D V-Cache implementation places the stacked cache below the compute die rather than above it, which shortens the path from the cores to the heat spreader. That change is the main reason air cooling works better here. That shortened path is the whole change.

It also means the chip is unlocked, so overclocking and Curve Optimizer tuning are both available. Undervolting remains the most useful of those, since trimming voltage lowers heat output without giving up meaningful gaming performance. Curve Optimizer is the tool most owners use.

Height, memory clearance and AM5 mounting

Capable towers stand between 154mm and 168mm, which excludes several compact cases outright. AM5 places the socket close to the memory slots, so a front fan hanging low can collide with tall heat spreaders on some kits. Measure the memory height as well as the case.

Check the AM5 hardware is in the box rather than assuming it. Current models from Thermalright, DeepCool, Noctua and be quiet! all include it, though older boxed stock occasionally predates the socket and ships with AM4 brackets only. Check the socket list on the exact listing.

Noise, fan curves and expectations

Rated noise figures are measured at maximum speed, which is not where a well-tuned fan spends its time. A wide PWM range matters far more, because it lets light workloads sit near idle instead of holding a constant audible speed. A low minimum speed matters more than a rating.

Set expectations correctly too. On this chip a better cooler mostly buys quiet operation and slightly steadier boost behaviour rather than extra frames, since gaming performance here is driven by the cache rather than by thermal headroom. Cache drives the gaming result, not temperature.

Top Picks: Best CPU Air Cooler for 9800X3D in 2026

All five ship with AM5 mounting and clear a 162W load with room to spare. Start with the height column, because case clearance rules out more of these than performance does. Stock was checked in August 2026 against current listings. Any of them can be the best CPU air cooler for 9800X3D in the right case.

Thermalright Phantom Spirit 120 SE

Seven heatpipes across two towers at 154mm makes this the strongest option in its price bracket, and the pair of 120mm PWM fans covers a wide enough speed range to stay quiet at idle while holding capacity in reserve for long sessions. It is the strongest option for the money.

Installation needs patience, since the AM5 backplate must be aligned carefully before tightening. The front fan can also foul memory taller than roughly 43mm, and there is no lighting at all on the standard version of the cooler. Budget ten extra minutes for the first install.

DeepCool AK620

Rated by DeepCool for 260W, the AK620 carries far more capacity than this chip will ever use, which means the fans rarely climb. Its FK120 fans span 500 to 1,850 RPM with 68.99 CFM and 2.19 mmH2O of static pressure per the specification. The fans almost never need to work hard.

It is heavy and stands 160mm tall, which causes problems in slim cases and on horizontally mounted boards. The matte black finish also shows dust quickly, and the standard model has no lighting for builders who want a visual centrepiece.

Noctua NH-D15 G2

The second-generation NH-D15 is the most capable air cooler here, with eight heatpipes and two NF-A14x25r G2 fans. Noctua also sells offset and high-clearance base variants, which matters when matching the cooler to a specific board layout.

At 168mm tall and very wide it excludes a lot of cases, and it costs several times what the Thermalright options do. On a chip this coolable, much of that capability goes unused unless you also value the six-year warranty. Much of that capability goes unused here.

be quiet! Dark Rock Pro 5

This dual tower pairs seven heatpipes with a 135mm and a 120mm Silent Wings fan, and the mounting system lets you remove the front fan for memory clearance. It is aimed squarely at builders who want capacity without audible fan noise. Removing the fan is also how you reach the screws.

It is heavy, and installing it in an assembled system is awkward because the front fan has to come off to reach the mounting screws. At 163mm it also needs a case with genuine clearance rather than an optimistic specification.

Thermalright Peerless Assassin 120 SE

The Peerless Assassin remains the value benchmark, with six heatpipes and two TL-C12C fans rated at 1,550 RPM, 66.17 CFM and 1.53 mmH2O, with a manufacturer noise figure of 25.6 dBA at maximum speed for the pair. It remains the safe budget default.

It sits slightly behind the Phantom Spirit on capacity for similar money, which makes the newer model the better buy where both are stocked. At 155mm it also crowds the ceiling of several compact mid-tower cases. Check the ceiling in your case first.

What the 2026 Market Means for This Build

Two current conditions shape how much cooler is worth buying for this processor, and both favour spending a little more than the chip strictly requires today. Both affect how much cooler is worth buying for the best CPU air cooler for 9800X3D decision.

AM5 is supported through 2029

AMD confirmed at Computex 2026 that socket AM5 will accept new processors through the end of 2029, so a cooler bought for a 9800X3D will very likely serve whatever replaces it in the same board several years from now. That is a long life for a single socket.

That makes buying slightly beyond your current needs defensible. A dual tower that looks excessive on a 162W chip becomes appropriate the moment a higher-power part goes into the same socket without any other changes. Buying slightly more cooler is defensible.

Cooler pricing and timing

Cooler prices have moved up roughly 6% to 8% and power supplies around 6% to 10% since promotional pricing policies ended at the start of February 2026, which is mild compared with what happened in the memory market this year. Cooling sits outside the memory problem.

Cooling is also among the categories still expected to discount genuinely around 27 November, unlike memory or prebuilt systems. Figures quoted here reflect August 2026 and are worth confirming against the listing before ordering. Check the live listing before you order.

Where the money goes further

With graphics card pricing elevated and no new processor generation arriving before CES in January 2027, improving the system you own is the sensible route. On this chip, though, a cooler mainly buys quiet rather than additional frames. Maintenance beats waiting for new hardware.

If the processor already holds its boost clocks in your games, put the money toward case airflow or storage instead. If it drops clocks during long rendering or compiling sessions, a larger cooler recovers real sustained performance. Log clock speeds during a long workload first.

Frequently Asked Questions

The questions readers ask most about cooling this processor, covering liquid alternatives, temperatures, bundled coolers and tuning. They come up most from readers choosing the best CPU air cooler for 9800X3D for a first build.

Does the 9800X3D come with a cooler?

No. Like other X-series parts it ships without a heatsink, so a cooler is a required line in the build rather than an optional upgrade you can postpone until the machine is running and you have measured temperatures. Budget for one from the very start.

Is air cooling really enough?

Yes for this chip. The 162W package limit sits well inside what a good dual tower handles, and moving the cache below the cores improved heat transfer enough that liquid cooling offers little beyond slightly lower peak numbers. Liquid cooling adds a pump that can fail.

Is 95C safe on this processor?

It is the designed ceiling, and the chip holds clocks while sitting there. Brief peaks under sustained load are expected behaviour, and the figure worth watching is whether clock speed drops rather than the temperature itself. Judge it on clocks rather than the reading.

Should I undervolt with Curve Optimizer?

It is worth testing. A modest negative offset usually lowers heat output and fan speed while keeping gaming performance intact, though stability needs verifying with a long workload rather than a short benchmark run.

See More:

• best CPU cooler for Ryzen 5 5600X
• best small form factor CPU cooler
• best SFF CPU cooler
• best CPU cooler for i9-14900K
• What is the best AIO CPU cooler

Final Thoughts

The best CPU air cooler for 9800X3D is a dual tower that fits your case with a few millimetres to spare, since capacity is no longer the difficult part on this generation. Measure clearance and memory height first, then buy the quietest option that fits. Clearance still decides more than capacity.
