Best CPU Cooler for Ryzen 5 5600X: 6 Quiet Picks for 2026

The best CPU cooler for Ryzen 5 5600X is almost never the biggest one you can afford. This six-core chip carries a 65W TDP and an 88W package power limit, so the real decisions come down to heatsink height, RAM clearance, and how much fan noise you are willing to hear while you game at your desk. Fit comes first.

As an Amazon Associate we earn from qualifying purchases.

By Ryan Cole

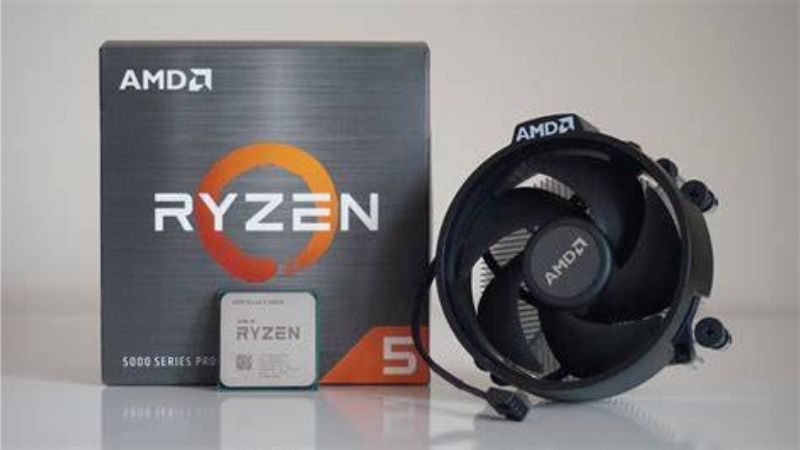

How to Choose the Best CPU Cooler for Ryzen 5 5600X

Four things decide whether a cooler works on this platform: thermal headroom, physical fit, acoustics, and the mounting hardware in the box. Get those right and almost any decent tower will hold the chip at safe temperatures during long gaming sessions. The best CPU cooler for Ryzen 5 5600X is usually just the quietest one that fits.

Thermal headroom: 65W TDP and 88W PPT

The Ryzen 5 5600X is rated at 65W TDP with a package power tracking limit near 88W, and Zen 3 allows a maximum operating temperature of 95C. That is a modest heat load by 2026 standards, so a cooler advertised for 180W or more already carries plenty of margin for stock operation.

Extra capacity is still useful, because a heatsink rated far above the load runs its fans at lower duty cycles. A 220W-class tower on an 88W chip typically idles under 1,000 RPM, which is the difference between a machine you notice and one that disappears into the background.

Physical fit: height, RAM clearance and offset

Measure two numbers before you buy: the cooler clearance in your case and the height of your memory heat spreaders. Most mid-tower cases accept 160mm to 170mm, but compact chassis often cap out at 155mm, which quietly rules out several popular dual-tower designs. Both figures are printed in the manufacturer specification sheet.

AM4 boards place the socket close to the DIMM slots, so a front fan hanging low can collide with tall RGB memory. Coolers with offset mounting or fan clips that let you raise the fan by 5mm to 10mm solve this, at the cost of a little clearance under the top panel. Check the memory height before the cooler height here.

Noise, fan pressure and bearing type

Airflow in CFM tells you how much air moves in open space; static pressure in mmH2O tells you how well that air pushes through dense fins. Tower coolers with tight fin stacks need pressure, which is why 1.5 mmH2O to 2.2 mmH2O ratings are common on this class of heatsink. Fin density is the number most reviews rarely mention.

Bearing type decides how the cooler ages. Fluid dynamic and S-FDB bearings usually stay quiet for years, while cheap sleeve bearings can develop a rattle after long spells of continuous operation. Rated noise between 25 dBA and 30 dBA at full speed is a reasonable target here.

AM4 mounting hardware in the box

AM4 gives you two mounting paths. Some coolers clip onto the plastic retention brackets that come with the motherboard, which is fast but limits pressure. Others replace those brackets with a backplate and screw-down system that seats the cold plate more evenly across the heat spreader.

Check the bundle before ordering. A cooler that ships with a preapplied thermal compound, a long screwdriver, and an AM4 backplate saves you a second purchase, while an AM5-only kit will leave you waiting on a bracket request from the manufacturer. A long magnetic screwdriver is the single most useful extra here.

Top Picks: Best CPU Cooler for Ryzen 5 5600X in 2026

These five coolers all ship with AM4 hardware and clear the 88W load with room to spare. They are ordered from best overall value to smallest footprint, so start with your case clearance and work down the table. Any of them qualifies as the best CPU cooler for Ryzen 5 5600X depending on your case.

Thermalright Peerless Assassin 120 SE

This is the default recommendation for anyone building around a 5600X on a budget. It is a dual-tower design with six heatpipes and two TL-C12C fans rated at 1,550 RPM, 66.17 CFM and 1.53 mmH2O, with a manufacturer noise figure of 25.6 dBA at maximum speed. Six heatpipes on an 88W chip is deliberate overkill.

The downside is assembly. The AM4 backplate needs care to align, and the front fan sits low enough that memory taller than roughly 43mm forces you to raise it. At 155mm it also brushes the ceiling of several compact cases, so check your clearance twice before ordering. Budget an extra ten minutes for the first installation.

DeepCool AK620

The AK620 is the pick if you plan to drop a 5800X3D or a used 5950X into the same board later. DeepCool rates the dual-tower heatsink for 260W, and its two FK120 fans span 500 to 1,850 RPM with 68.99 CFM and 2.19 mmH2O of static pressure per the spec sheet. That headroom is worth paying for if AM4 is your long-term platform.

It is heavy and 160mm tall, which is a genuine problem in slim cases and on boards mounted horizontally. The matte black finish also shows dust quickly, and there is no lighting at all, so builders who want a visual centrepiece should look elsewhere. Check your case clearance and the weight rating of your motherboard tray.

Noctua NH-U12S redux

Noctua trims the price of its classic single tower by using a redux-series fan and simpler packaging. You get five heatpipes, a 158mm height, and an NF-P12 redux-1700 PWM fan, plus the SecuFirm2 mounting system that makes AM4 installation genuinely straightforward. The six-year warranty is part of what you are paying for.

Because the tower is narrow and the fan sits high, it clears tall memory without adjustment. The trade-off is capacity: on a hot summer day with a heavy render load it gives up ground to dual-tower rivals, and the grey and brown colour scheme is still divisive. For a stock 5600X that limitation rarely appears in practice.

ID-COOLING SE-224-XT ARGB

For builders who want addressable lighting without spending much, this single tower carries four direct-contact heatpipes, a 154mm height, and a 120mm ARGB fan on a 4-pin PWM header with a separate 5V 3-pin lighting connector for motherboard sync. Lighting quality is good for the money.

It handles the 5600X comfortably, but the fan is louder at full tilt than the Thermalright and Noctua options, and the ARGB hub adds cable clutter behind the tray. Treat it as a lighting-first choice rather than an acoustic one, and set a gentle fan curve in BIOS. Treat the bundled paste as a placeholder rather than a finished job.

Thermalright Assassin X 120 Refined SE

At roughly 148mm tall, this is the escape hatch for cases that reject bigger towers. Four heatpipes make direct contact with the CPU, the single 120mm PWM fan uses the same S-FDB bearing family as pricier Thermalright models, and AM4 hardware is included. It is the smallest cooler here that still handles the chip without complaint.

Capacity is the obvious limit. It is sized for chips in the 65W to 125W range rather than anything hotter, and the aluminium top cover is plain. For a stock 5600X in a compact build, though, it does the job for the least money of anything here. Pair it with one decent case exhaust fan and the combination works well.

What the 2026 Cooling Market Means for This Upgrade

Component pricing has been unusually volatile this year, and cooling is one of the few categories that still behaves normally. Two market factors are worth knowing before you check out, and both work in favour of buying a cooler now rather than waiting. Both matter when you are budgeting for the best CPU cooler for Ryzen 5 5600X.

Cooler prices have crept up, not exploded

Air coolers and thermal compound have seen roughly 6% to 8% price movement, and power supplies around 6% to 10%, while promotional pricing policies were withdrawn at the start of February 2026. Those are mild increases next to what happened in the memory market. Check the live listing rather than trusting a price quoted in a review.

Practically, that means the gap between a budget tower and a premium one has narrowed slightly rather than reshaped the category. Prices quoted here reflect the market at the time of writing in August 2026 and should be checked against the current listing before you buy. Stock levels have been steadier than pricing this year.

Black Friday still works for cooling parts

The usual advice to wait for late November does not hold for memory or prebuilt systems this year, because stock shipping in November was built from contract memory bought at 2026 prices. Coolers, fans, cases and thermal paste are a different story. Cooling parts sit outside the memory contract problem entirely.

Those categories are not tied to memory contracts, so genuine discounts on cooling hardware are still likely around 27 November. If your 5600X is running hot but stable today, waiting a few weeks is a reasonable call rather than a gamble. Set a price alert now and revisit it in the last week of November.

Why a cooler upgrade still pays off

With graphics card pricing up sharply and no new CPU or GPU generation arriving before CES in January 2027, there is little point holding cash for a platform jump. A cooler, fresh paste and better case airflow deliver a real change to a 5600X system today. AM4 also still has upgrade paths that do not require a new board.

The honest limit is performance. Better cooling on a stock 5600X mostly buys quieter operation and steadier boost behaviour, not extra frames. If you want more speed rather than less noise, save toward a 5700X3D or 5800X3D on the same AM4 socket instead. Both chips drop into the same socket without a BIOS gamble on most boards.

Frequently Asked Questions

These are the questions that come up most often when readers plan cooling for this chip, covering the stock cooler, liquid options, thermal paste and case airflow. They come up most when readers shortlist the best CPU cooler for Ryzen 5 5600X, and each answer assumes a stock chip in a case with normal airflow.

Is the stock Wraith Stealth cooler good enough?

It keeps a stock 5600X within safe limits, so nothing breaks. It simply ramps loudly under sustained load and allows higher sustained temperatures, which is why almost every aftermarket tower here is bought for acoustics rather than raw safety margin. Swapping it out is about comfort rather than safety.

Do I need a liquid cooler for a Ryzen 5 5600X?

No. An 88W package limit is well inside what a good air tower handles, and a 240mm liquid unit adds pump noise, extra cost and another failure point. Liquid cooling makes more sense on chips pulling 200W or more for long periods. If you already own one it will work fine.

Will these coolers fit AM5 if I upgrade later?

Most current models ship with both AM4 and AM5 brackets in the same box, and Thermalright, DeepCool and Noctua all supply AM5 hardware. Check the listing text for your specific revision, since older stock sometimes predates AM5 support entirely. Manufacturers will usually send an AM5 bracket on request if it is missing.

How much thermal paste should I apply?

A pea-sized dot in the centre of the heat spreader is enough for this socket. Mounting pressure spreads it outward, and excess compound simply squeezes past the edge without improving contact between the cold plate and the integrated heat spreader. Clean the old compound off with isopropyl alcohol before reseating anything.

See More:

• best small form factor CPU cooler
• best SFF CPU cooler
• best CPU cooler for i9-14900K
• What is the best AIO CPU cooler

Final Thoughts

Choosing the best CPU cooler for Ryzen 5 5600X comes down to clearance first and capacity second, because almost every tower on this list has more than enough headroom for an 88W chip. Measure your case, check your memory height, then pick the quietest option that fits. Capacity is the easy part on a chip this modest.
