Best AM5 CPU Cooler Picks for Ryzen 7000 and 9000 Chips

Best AM5 CPU Cooler choices are shaped by one thing above all: Ryzen 7000 and 9000 processors are designed to sit at their thermal ceiling under load, so the cooler decides sustained clocks rather than whether the chip survives. Here are six options that suit different AM5 builds, with the specifications that matter.

As an Amazon Associate we earn from qualifying purchases.

By Ryan Cole, hardware writer at NVIDIAReview.

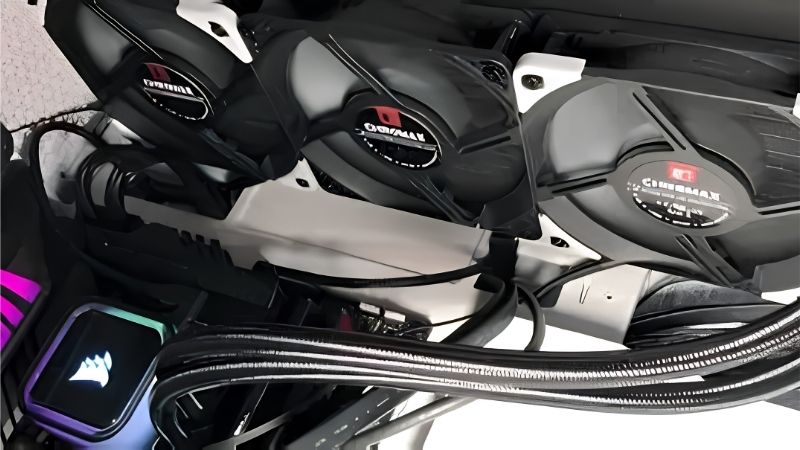

How to Choose the Right AM5 CPU Cooler for Your Build

AM5 behaves differently from older platforms: boost algorithms push until they hit a temperature or power limit, so the best am5 cpu cooler shows up as higher held clocks rather than as a lower idle number. Four factors decide which class you need.

Start With Package Power, Not the TDP on the Box

A Ryzen 5 9600X draws around 88 W PPT, a Ryzen 7 9800X3D lands near 162 W, and a Ryzen 9 with sixteen cores can hold well over 200 W during a sustained all-core render. Those numbers, not the marketing TDP, set the cooler class.

Below 100 W, a competent single tower is enough. Between 120 and 180 W, a dual-tower design with six or seven heatpipes is the sweet spot. Above that, a 280 mm or 360 mm loop keeps clocks from sagging during long workloads.

X3D parts are a special case. Their cache layer sits above the cores, so they respond well to good contact and airflow even though total package power is moderate compared with a sixteen-core chip.

AM4 Brackets Usually Carry Over to AM5

AMD kept the same cooler mounting hole spacing when it moved from AM4 to AM5, so a large share of existing coolers bolt straight on. If you are upgrading a platform rather than starting fresh, check the manufacturer compatibility list before buying anything new.

Offset mounting is the AM5-specific detail worth knowing. Shifting the cold plate slightly toward the compute die can shave a degree or two on some chips, and several brands now ship brackets that allow it.

Height, Memory and Case Clearance

Tall AM5 memory kits running EXPO profiles are common, and a dual-tower cooler with a front fan often sits directly over the first DIMM slot. Either choose low-profile modules or accept raising the fan and losing a small amount of fin coverage.

Case clearance ends more builds than heat does, and the best am5 cpu cooler on paper is useless if the side panel will not close. Mid-towers typically allow 165-170 mm, compact chassis stop nearer 155 mm, and ITX enclosures can cap out under 70 mm depending on layout.

Noise Behaviour Under Sustained Load

Because AM5 chips boost until they hit a limit, fans on an undersized cooler stay near maximum for the whole workload. That constant ramping is what people actually hear, more than peak dBA figures on a spec sheet.

Larger fins and 140 mm fans move the same air at lower RPM, which is the practical route to a quiet AM5 system. A modest custom fan curve does the rest without a measurable performance cost.

Top Picks for the Best AM5 CPU Cooler in 2026

Candidates for the best am5 cpu cooler run from a 47 mm ITX unit to a thick 360 mm loop. All figures are manufacturer-rated, and retail pricing at the time of writing in August 2026 shifts weekly, so treat the tiers as your guide rather than any fixed number.

Thermalright Phantom Spirit 120 EVO

Seven heatpipes, a 157 mm stack and two 120 mm PWM fans make this the default answer for a 9700X or 9800X3D. It sits close to far more expensive towers under sustained load, and the AM5 bracket is included in the box.

The compromises are cosmetic and acoustic: plain fans that get loud at full speed, and a wide body that crowds tall memory. Set a gentler curve in the BIOS and most of the noise complaint disappears.

Noctua NH-D15 G2

The eight-heatpipe layout, 168 mm height and pair of NF-A14x25r G2 fans make this one of the strongest air coolers available for a Ryzen 9 build. Noctua supplies socket brackets long after launch and covers the cooler for six years.

Cost is the main barrier, and the height rules out a lot of mid-towers. It also ships in versions tuned for different mounting pressures, so confirm you are ordering the variant intended for AM5 rather than the flat-IHS Intel option.

be quiet! Dark Rock Pro 5

Rated for 270 W with seven heatpipes and a 163 mm stack, this dual tower pairs a 135 mm fan with a 120 mm unit from the Silent Wings family. It is aimed squarely at people who want Ryzen 9 performance without fan noise.

It is heavy and awkward to install, and the dark fin coating adds cost without adding cooling. Clearance over the first memory slot is workable but tight with taller EXPO kits.

Arctic Liquid Freezer III 360

A 38 mm thick radiator, P12 Pro fans spanning 200-2,000 RPM and a small VRM fan on the pump block make this the practical pick for a 9950X or any workload that holds full power for hours. Warranty coverage runs six years.

You need real roof clearance for the thick radiator plus fans, and the fans are clearly audible near the top of their range. The integrated cabling is neat but limits swapping in your own fans later.

DeepCool AK620

Six heatpipes, a 160 mm squared-off shroud and two fluid dynamic bearing fans rated up to about 1,850 RPM give this cooler solid mid-range performance with a cleaner look than most bare-fin designs. DeepCool rates it for 260 W.

It is bulky, and both fans must come off to reach the mounting screws. Memory clearance is limited enough that low-profile modules are the safer purchase alongside it.

Thermalright AXP90-X47

For an ITX AM5 board in a small case, this 47 mm low-profile cooler with four heatpipes and a 92 mm fan is one of the few options that still handles a 65-105 W processor without screaming. Copper and aluminium fin versions are both sold.

It is not a cooler for a Ryzen 9. The small fan spins fast, so it is audible under load, and sustained heavy workloads will push a mid-tier chip into throttling territory in a cramped chassis.

What the 2026 Market Means for AM5 Buyers

Cooling has avoided the worst of this year’s pricing turbulence, but the wider platform picture changes how much the best am5 cpu cooler is worth paying for. Three points are relevant before you order anything.

AM5 Is Supported Through 2029

AMD confirmed at Computex 2026 that the AM5 socket will continue receiving new processors through the end of 2029, while Intel’s next generation requires a new socket. A cooler bought for AM5 today will likely serve at least one more CPU.

That changes the maths on spending. Amortised across two processors and several years, the gap between a mid-tier tower and a strong one is small enough that buying the better cooler once usually makes sense.

Cheap Cooling Options Are Thinning Out

Manufacturers have shifted focus toward mid and upper tiers as entry-level demand shrank, and cooler pricing has moved up in the region of six to eight percent. Promotional pricing that used to cushion the budget end was withdrawn in early 2026.

The result is a narrower gap between basic and good. Where a bargain tower once cost a third of a premium one, the difference now is often small enough to justify skipping the cheapest option.

Cooling Is Still Where Small Money Buys Real Gains

With no new CPU generation arriving before CES in January 2027, there is nothing to wait for on the processor side. Improving cooling raises held boost clocks and gives room for undervolting or PBO tuning on an existing chip.

If your current cooler is merely adequate rather than failing, November is a reasonable time to buy, since coolers, fans and paste still see genuine discounts even in a year when memory and prebuilt systems do not.

Frequently Asked Questions

A few points come up repeatedly once someone has an AM5 board picked out and is choosing the best am5 cpu cooler to bolt onto it.

Is 95 degrees normal on a Ryzen 7000 or 9000 chip?

For non-X3D parts, yes. The boost algorithm targets the thermal limit deliberately and will hold there during heavy loads. A better cooler does not lower that ceiling, it lets the chip run higher clocks before reaching it.

Can I reuse my AM4 cooler on an AM5 board?

In most cases yes, because the mounting hole spacing carried over. Check the manufacturer list for your specific model first, and confirm the backplate style your motherboard supports before removing anything.

Do I need an AIO for a Ryzen 9 processor?

Not necessarily. A strong dual-tower handles a Ryzen 9 in most gaming and mixed workloads. A 360 mm loop earns its place when you run all-core loads for hours at a time or when tower clearance is limited.

Does the stock Wraith cooler work on AM5?

Only for the lowest-power models, and even then it runs loud. Any chip in the 100 W and up range benefits immediately from a tower cooler, both in held clocks and in noise during ordinary use.

See More:

• What Is the Best Thermal Paste
• Best PC Case Fans 120mm
• Thermal Paste Best Brand
• Best Thermal Paste Brands
• Best CPU Cooler Reddit

Final Thoughts

The best am5 cpu cooler for your build comes down to package power and clearance, not brand loyalty. Under 100 W a single tower is fine, a 9700X or 9800X3D suits a seven-heatpipe dual tower, and a sixteen-core chip under sustained load wants a thick 360 mm loop.
